Details

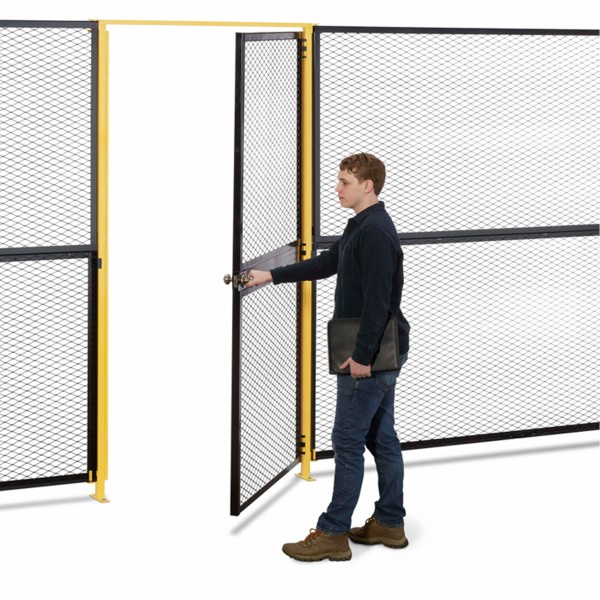

IEP OverEZ 3' Width x 8' Height Hinged Door for Mesh Partitions with Lock - OEZ-HD3

Give your mesh partition enhanced access and security with this hinged door, featuring a mortise cylinder lock and two posts for easy installation with your partition system. Simply connect the door posts to your partition system for installation done in seconds, and with its 13-gauge steel body, this door is highly resistant to impacts and tampering. Includes butt hinges for smooth rotation.

Features:

• Door Kit: Door with Lock & 2 Posts
• No Bolts Required - secures with only 4 wing nuts
• Grey powder coat standard, custom colors available
• Made in the USA with 100% Recycled Steel

Specifications:

• Finish: Grey Powder Coated (Custom Options Available)
• Mesh: 1-1/2" 16-gauge Diamond Expanded Metal
• Frame: 1-1/2" x 1-1/2" 13-gauge Angle Iron
• Horizontal Reinforcing: 1-1/2" x 1-1/2" 13-gauge Angle Iron
• Post: 1-1/2" x 1-1/2" 14-gauge Tube
• Pin: 5/8"
• Hinges: Butt type with fixed pins, 3" x 4" (76 x 102mm) steel, three per door; bolted, riveted, or welded to door and jamb framing
• Cylinder Lock: Mortise type with standard cylinder operated by key outside and recessed-turn knob lever inside
